Description
All-steel, ground machine vices with an accuracy of 0.04 mm in the axis.
All vices and accessories are of the modular system, and any replacement guarantees complete alignment. Every single vise goes through a strict manufacturing inspection before shipping. This results in the following advantages: - quick and precise clamping of the workpiece relative to the tool - repeated precise clamping - possible planar modular system. Below are the technical parameters of this type of vise:
All vices and accessories are of the modular system, and any replacement guarantees complete alignment. Every single vise goes through a strict manufacturing inspection before shipping. This results in the following advantages: - quick and precise clamping of the workpiece relative to the tool - repeated precise clamping - possible planar modular system. Below are the technical parameters of this type of vise:

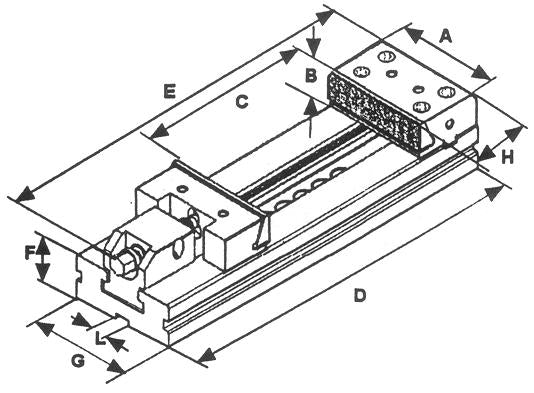

| AND | B | C | D | E | F | G | H | AND | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension [mm] | 100 | 30 | 100 | 270 | 320 | 35 | 75 | 77.9 | 16 | 6.8 |
