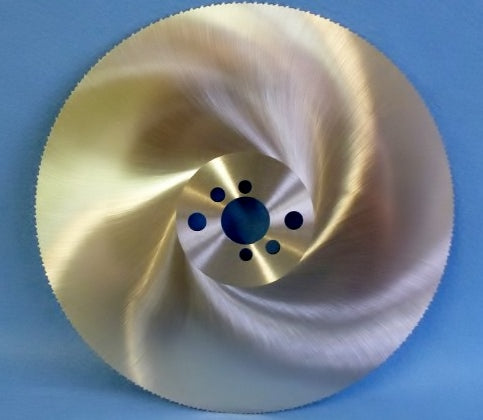

250x1.2x32 - HSS SAW BLADE DIN1837

Sale price637,24 Kč bez DPH
In stock


250mm x 1.2mm x 32mm, HSS DMo5 with flange

ČSN: 222910
DIN: 1837
Diameter: 250 mm
Thickness: 1.2 mm
Clamping hole: dia. 32 mm

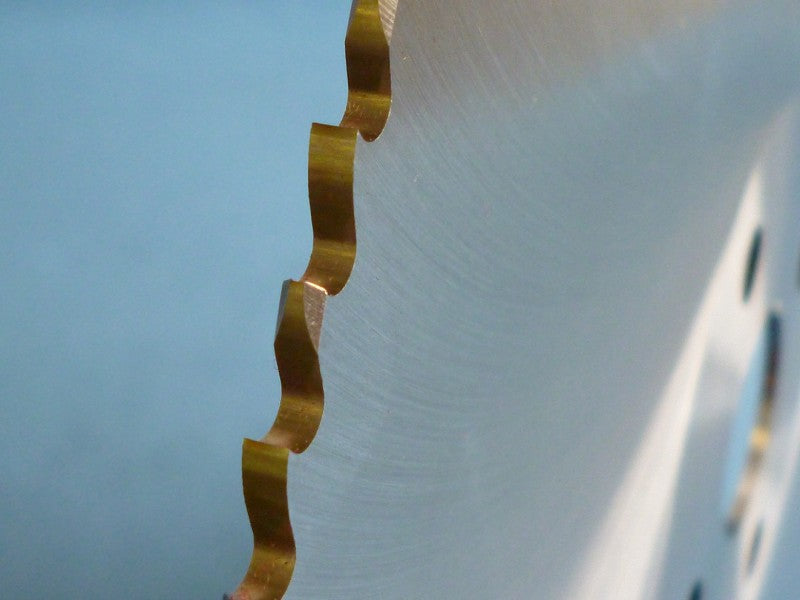

Number of teeth: 200, teeth type A
Drive holes: per center hole dia. 32 = 2/8/45 - 2/9/50 - 2/11/63
Drive holes are defined by three parameters - number of drives / diameter of drives / diameter on which the drives are made.

Suitable for materials: steel, cast iron, non-ferrous metals, plastics
Application: intended for cuts to a small depth, especially for cutting grooves, and cutting thin-walled profiles. Suitable for machined materials that form short chips
Machine: cutting machines and machining centers

Both alloy, tungsten and molybdenum 5% with a special surface treatment were used for the production of the disc. HSS DMo5 increases service life.

A larger number of holes (flanges) does not affect the use and functionality and can only be clamped in the main hole.
