Description
Dimensions 75-100 mm, graduation 0.001 mm, accuracy ±0.005 mm
Jaw feeler micrometers
Properties:
Graduation 0.001mm/0.00005"
It measures the gearing and its thickness
Jaw type measuring surfaces
Automatic battery shutdown extends battery life
When the display is switched on, the current absolute measured position is available
Method of measurement absolute or gradual
Metric/inch switching
Fixed, non-rotating spindle on the digital model
Gray lacquered steel frame
Ratchet
Basic accessories
S key, battery /for digital version/
Warranty card, instructions for use, calibration certificate
Basic gauge /range 1"/25 mm and more/
Jaw feeler micrometers
Properties:
Graduation 0.001mm/0.00005"
It measures the gearing and its thickness
Jaw type measuring surfaces
Automatic battery shutdown extends battery life
When the display is switched on, the current absolute measured position is available
Method of measurement absolute or gradual
Metric/inch switching
Fixed, non-rotating spindle on the digital model
Gray lacquered steel frame
Ratchet
Basic accessories
S key, battery /for digital version/
Warranty card, instructions for use, calibration certificate
Basic gauge /range 1"/25 mm and more/

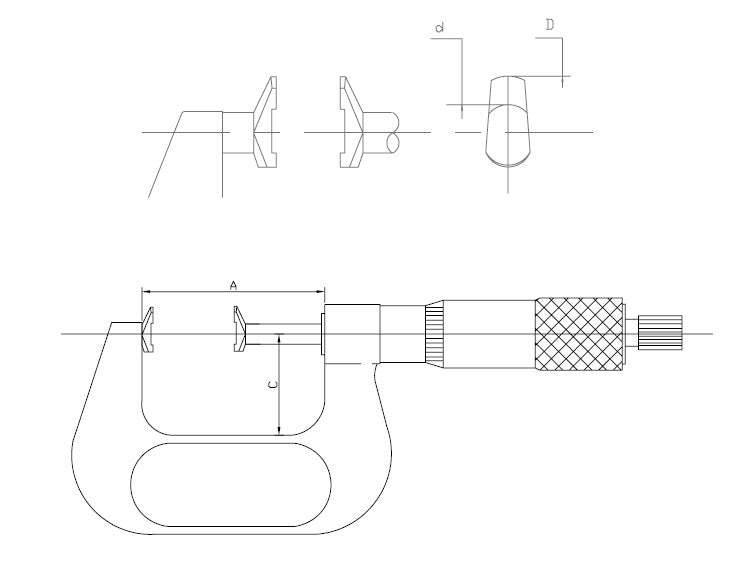

| SIZE | AND | C | D | d |
|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] |
| 75-100 | 110.2 | 57 | R10 | ?8 |
