Description
Dimensions 75-100 mm, graduation 0.001 mm, accuracy ±0.004 mm

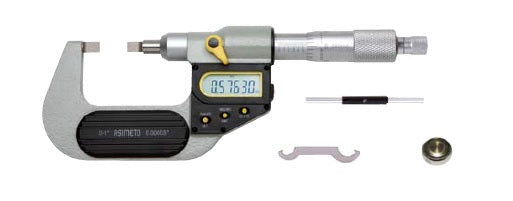

Micrometers with fitted measuring surfaces
Properties:
Graduation 0.001mm/0.00005"
It measures the diameters of shaft splines and other hard-to-reach positions
Automatic battery shutdown extends battery life
When the display is switched on, the current absolute measured position is available
Method of measurement absolute or gradual
Metric/inch switching
Carbide measuring surfaces
Fixed, non-rotating spindle
Gray lacquered steel frame
Ratchet
Basic accessories
S key, SR44 battery /for digital version/
Warranty card, instructions for use, calibration certificate
Packaging: plastic case
Micrometers with fitted measuring surfaces
Properties:
Graduation 0.001mm/0.00005"
It measures the diameters of shaft splines and other hard-to-reach positions
Automatic battery shutdown extends battery life
When the display is switched on, the current absolute measured position is available
Method of measurement absolute or gradual
Metric/inch switching
Carbide measuring surfaces
Fixed, non-rotating spindle
Gray lacquered steel frame
Ratchet
Basic accessories
S key, SR44 battery /for digital version/
Warranty card, instructions for use, calibration certificate
Packaging: plastic case

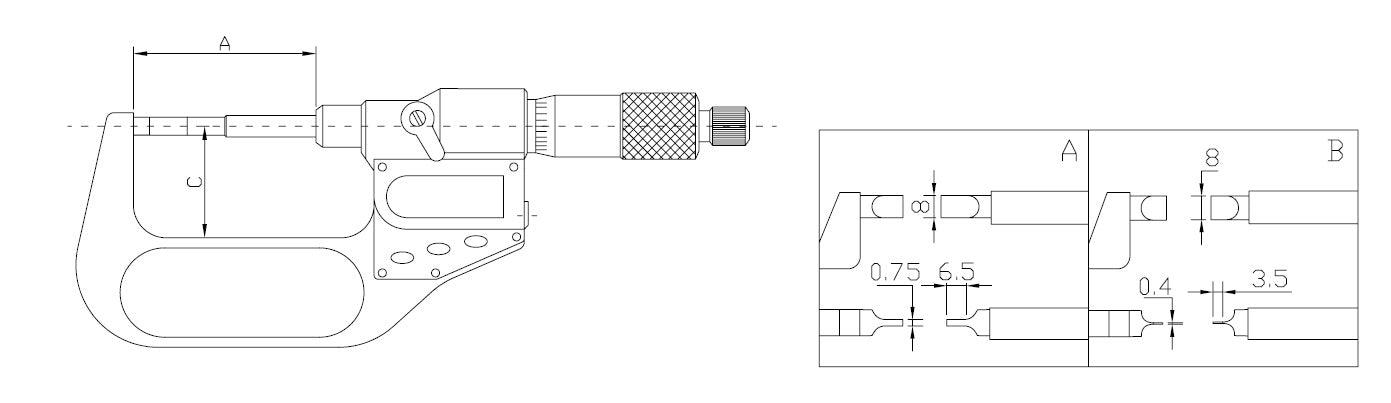

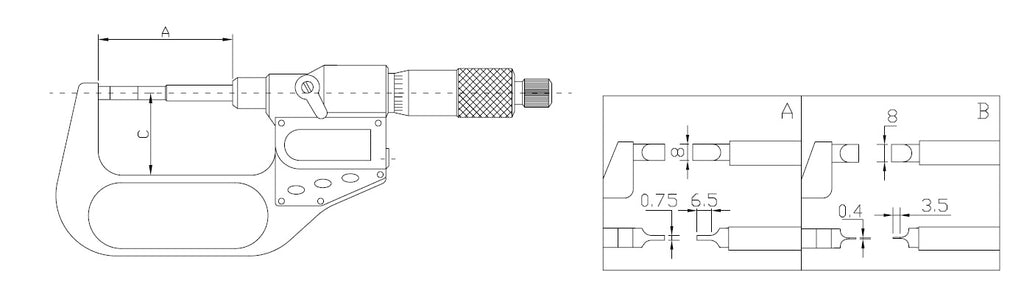

| SIZE | AND | C |
|---|---|---|
| [mm] | [mm] | [mm] |
| 75-100 | 132.6 | 69.5 |
