VB1100 - Magnetic V-Block with PH arm
VB1100 - Magnetic V-Block with PH arm
Roll over image to zoom in Click on image to zoom
VB1100 - Magnetic V-Block with PH armVB1100 - Magnetic V-Block with PH arm

VB1100 - Magnetic V-Block with PH arm

NOGASKU: VB1100
Price:
5.021,39 Kč bez DPH
Stock:
In stock

Description

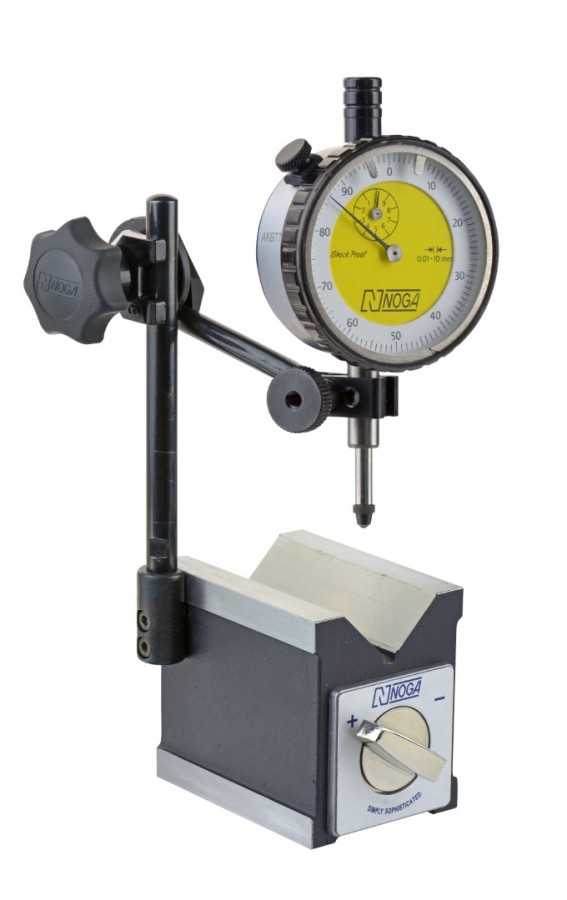

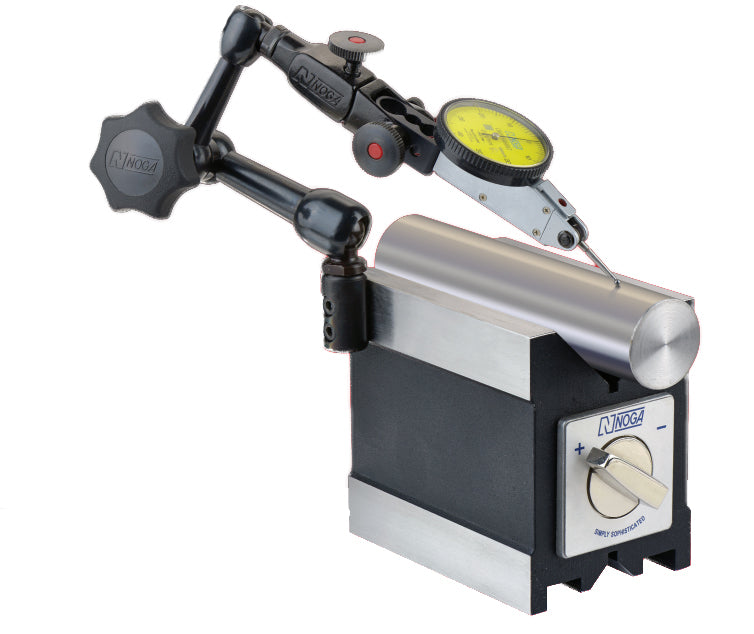

NOGA magnetic V-Block in PH arm set

NOGA magnetic V-Block fitted with PH arm
  • The leg magnetic V-Block in the set with the arm will find application in various forging operations.
  • Securely grips material during delicate operations such as drilling, milling, threading and grinding.
  • Thanks to the fitting with the PH arm, it allows you to clamp the deflection meter and thus perform quick and accurate measurements.
  • It is also possible to clamp other components with a diameter of 6 mm, 8 mm, 3/8" or using a dovetail.

Benefits and features:
  • - Designed for versatile and precise clamping with the option of fitting a PH arm
  • - All work surfaces are precisely ground
  • - With the help of 2 precise "V-surfaces" a log with a diameter of 8-65 mm can be clamped
  • - V-Blok has a switchable magnet (magnet activation using the ON/OFF button)
  • - PH arm with fine build
  • - Can be used not only for clamping, but also for inspection work.

STAND SHOULDER CLAMPING BASE IN
L1+L2[mm] L1 L2 diameter [N] W L H IN
10x120 8x110 8; dovetail 600 60 100 73 8-52
