Description

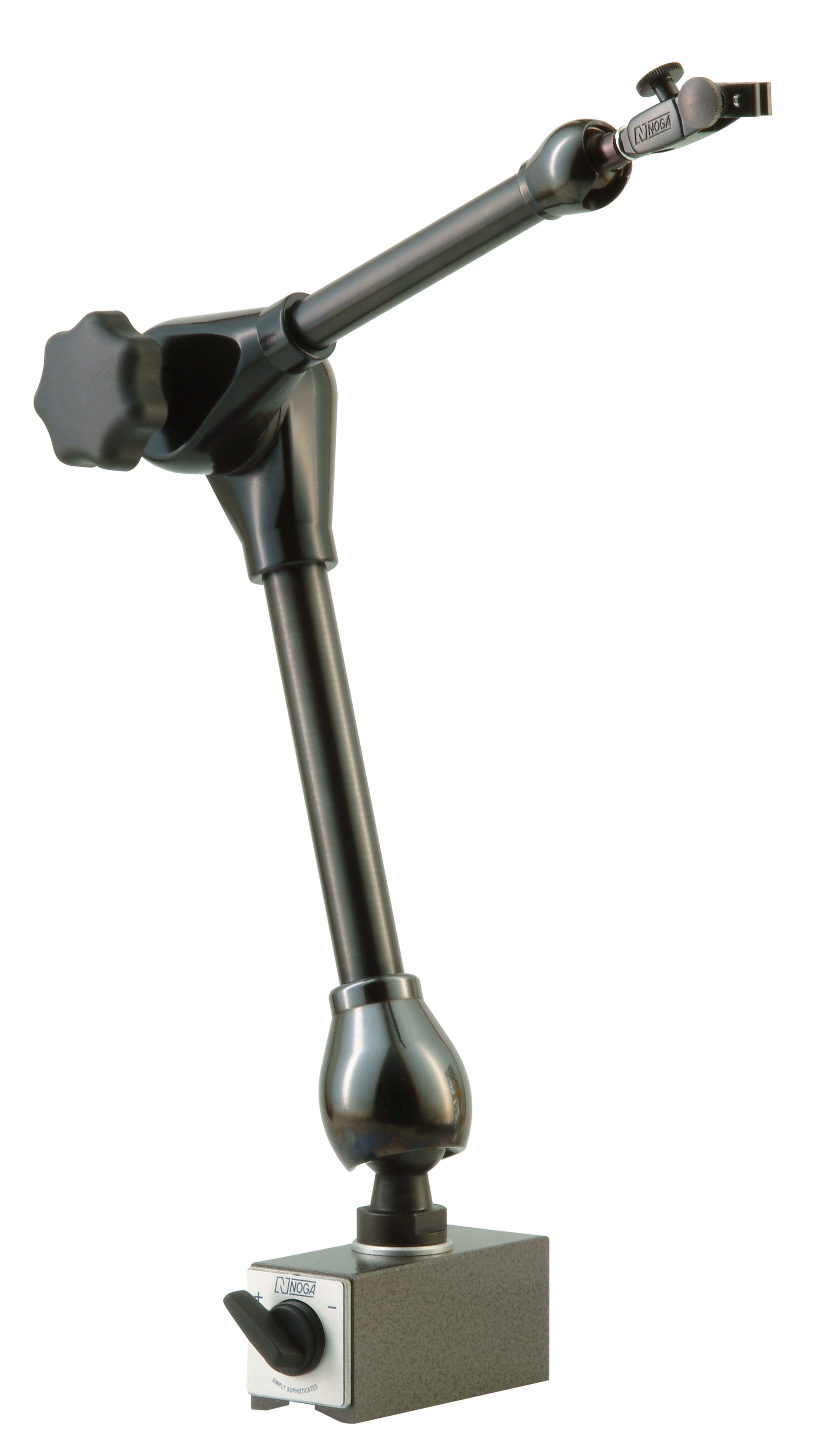

With central locking, fine adjustment for clamping, arm length + clamping 637.0 mm
UP001000 - CLAMPING (formerly FA1500)
ZA000040 - BASE (formerly DG0039)
| STAND | SHOULDER | CLAMPING | BASE | ||||
|---|---|---|---|---|---|---|---|
| L1+L2+L3[mm] | L1 | L2 | diameter | [N] | W | L | H |
| 637.0 | 326 | 242 | 3/8", 6.8; dovetail | 1300 | 50 | 120 | 55 |
Consists of
MA400000 - ARM (formerly MA60103)UP001000 - CLAMPING (formerly FA1500)
ZA000040 - BASE (formerly DG0039)
