Description

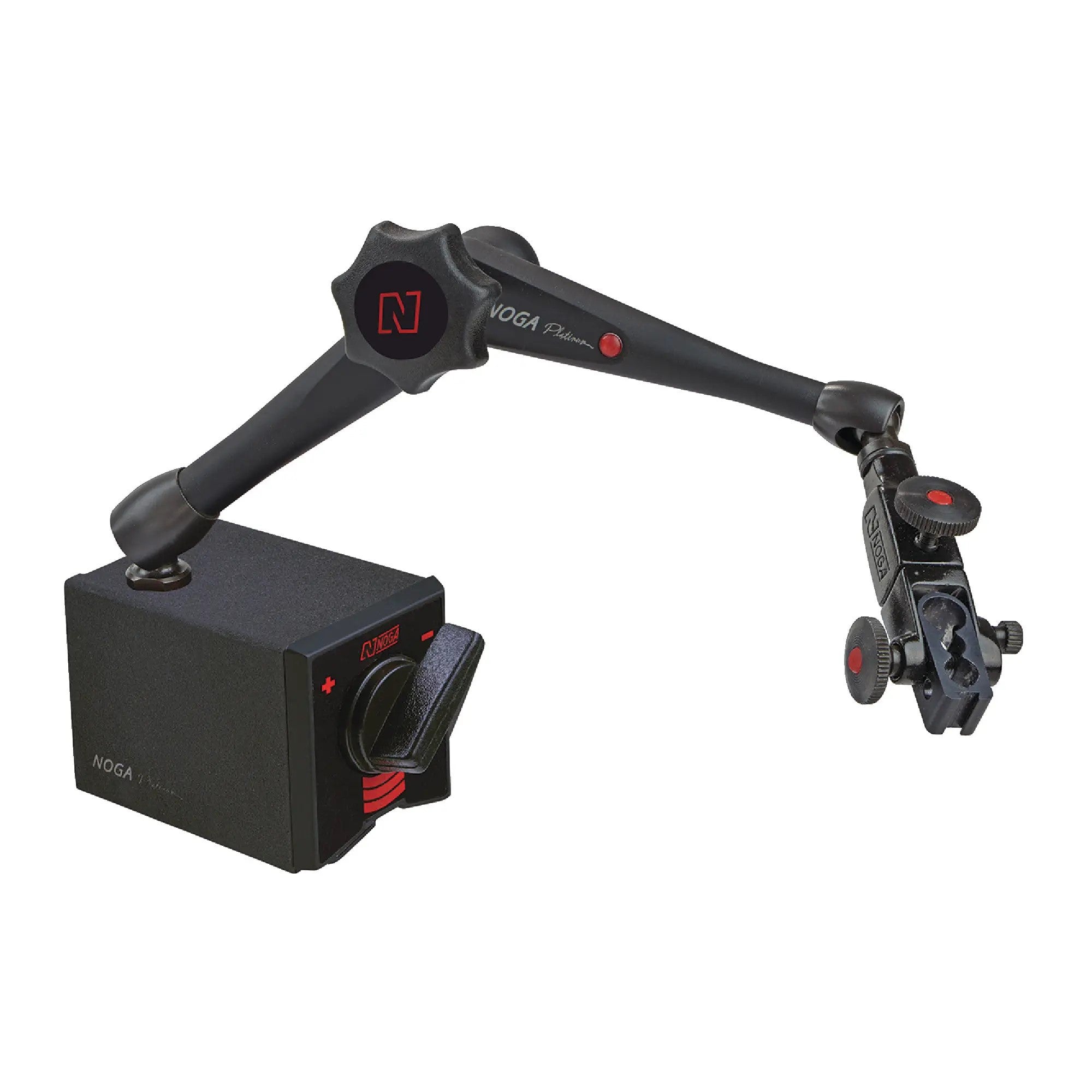

With central locking, fine adjustment on the clamping, arm length + clamping 282.0 mm
Arm with M8 thread screwed into magnetic base.
Arm with M8 thread screwed into magnetic base.
| STAND | SHOULDER | CLAMPING | BASE | ||||
|---|---|---|---|---|---|---|---|
| L1+L2+L3[mm] | L1 | L2 | diameter | [N] | W | L | H |
| 282.0 | 110 | 101 | 3/8; 6; 8; dovetail | 800 | 50 | 75 | 55 |
