MT2410 - MEASURING TABLE WITH GRANITE. PLATE

NOGASKU: MT2410

Price:
Sale price12.207,50 Kč bez DPH
Stock:
In stock

Description

PH stand without central locking, fine adjustment for clamping, arm length 18x350 and 16x225 mm

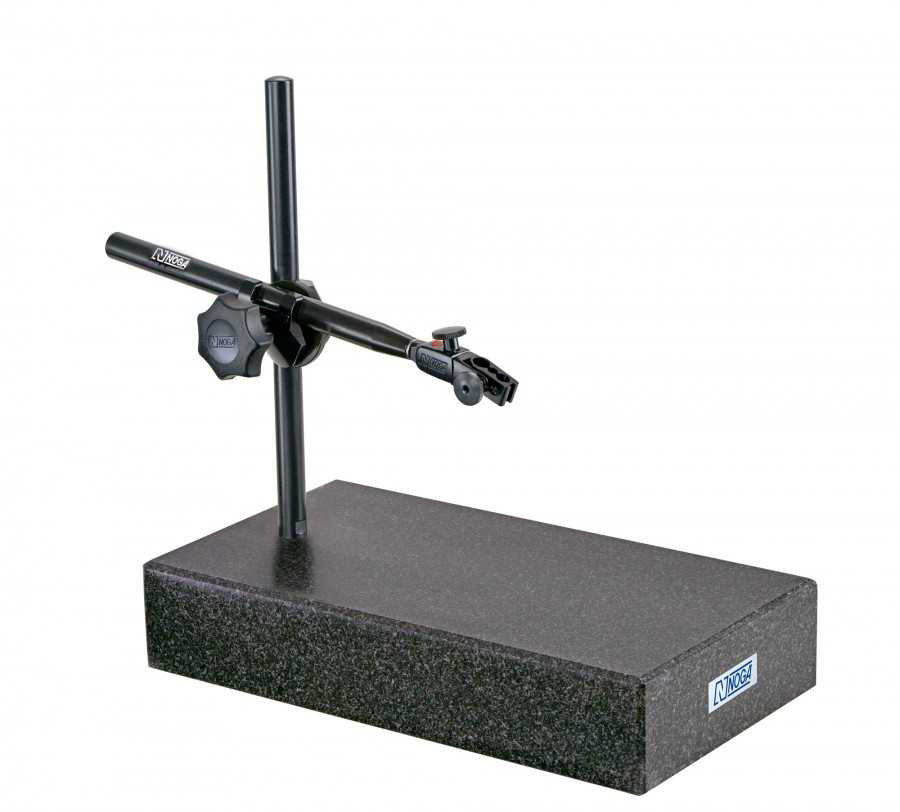

NOGA stand with granite base and PH arm with fine build.

The base is made of high quality hardened granite which will give you:
  • - high accuracy and stability, resistance to distortion and additionally guarantees increased measurement accuracy
  • - no rust or corrosion - no special maintenance required
  • - wear resistance - long-term service life guaranteed
  • - non-magnetic material
  • - flatness less than < 2 µm - DIN 876
  • - weight 30 kg

Due to its stability and ease of use, the PH40 arm is the most sought-after arm in the industry.
  • - massive 3D arm with lock.
  • - fine adjustment in the upper part of the arm.
  • - clamps diameters 6 mm, 8 mm, 3/8".
  • - the possibility of clamping with a dovetail.
  • - quick and easy adjustment of gauges to the desired position.
  • - black design.
The M10 threaded arm is screwed into the granite base.

STAND SHOULDER CLAMPING BASE
L1+L2+L3[mm] L1 L2 diameter W L H
18x350 16x225 3/8; 6; 8; dovetail 400 400 60
