Description
Range 0-25mm, graduation 0.001mm, accuracy ±0.005mm
Properties:
Robust construction
Absolute and SYLVAC system
Resistant to water and coolants
Protection level IP67 according to IEC 60529 even when connected to a cable
Metric/inch switching
Presets
Zero setting
Shaft diameter 8 mm
Automatic power off and on (SIS system)
Rotatable display (more than 270°)
New menu configuration technology
Basic accessories:
CR2302 battery
Warranty card, instructions for use, calibration certificate
Packaging: plastic case for ranges up to 150 mm
Note
IP67 = complete resistance to ingress of dust, protection against ingress of water up to a depth of 1 m for 30 min.
Properties:
Robust construction
Absolute and SYLVAC system
Resistant to water and coolants
Protection level IP67 according to IEC 60529 even when connected to a cable
Metric/inch switching
Presets
Zero setting
Shaft diameter 8 mm
Automatic power off and on (SIS system)
Rotatable display (more than 270°)
New menu configuration technology
Basic accessories:
CR2302 battery
Warranty card, instructions for use, calibration certificate
Packaging: plastic case for ranges up to 150 mm
Note
IP67 = complete resistance to ingress of dust, protection against ingress of water up to a depth of 1 m for 30 min.

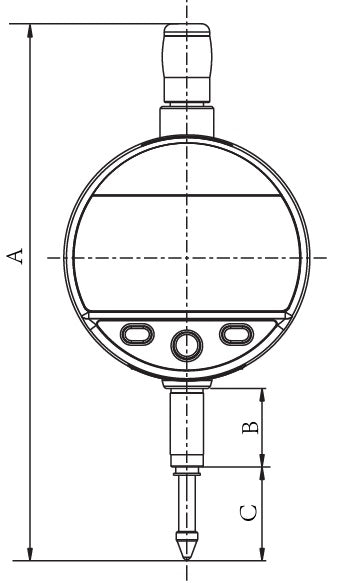

| SIZE | AND | B | C |
|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] |
| 0-25 | 149 | 19 | 33 |
