Description

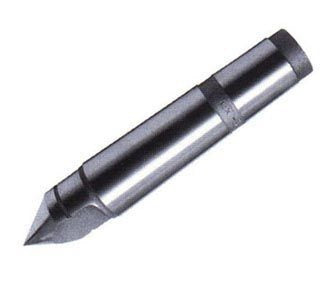

Flattened chuck with cemented carbide insert (60° apex angle)
*) The values indicating the maximum permissible tip load in kp are only informative. For refurbished tips, these values are halved. Clamping tips that are allowed to be renovated by the manufacturer have a knurled part on the cylindrical part, the front edge of which is the limit up to which the tip can be renovated at an angle of 60°, so that its strength does not decrease too much. Clamping points without a ring must not be refurbished.
| MORSE TAPER SHIFT | LARGE AVER. STOPWATCH | CYLINDER DIAMETER. PARTS OF THE TIP | CYLINDER LENGTH. PARTS OF THE TIP | OVERALL TIP LENGTH | MAXIMUM PERMITTED LOAD kp*) | WEIGHT |
|---|---|---|---|---|---|---|
| MT 0 | 9.212 mm | 8 mm | 17 mm | 70 mm | 5 kp | 0.03 kg |
*) The values indicating the maximum permissible tip load in kp are only informative. For refurbished tips, these values are halved. Clamping tips that are allowed to be renovated by the manufacturer have a knurled part on the cylindrical part, the front edge of which is the limit up to which the tip can be renovated at an angle of 60°, so that its strength does not decrease too much. Clamping points without a ring must not be refurbished.
