Description

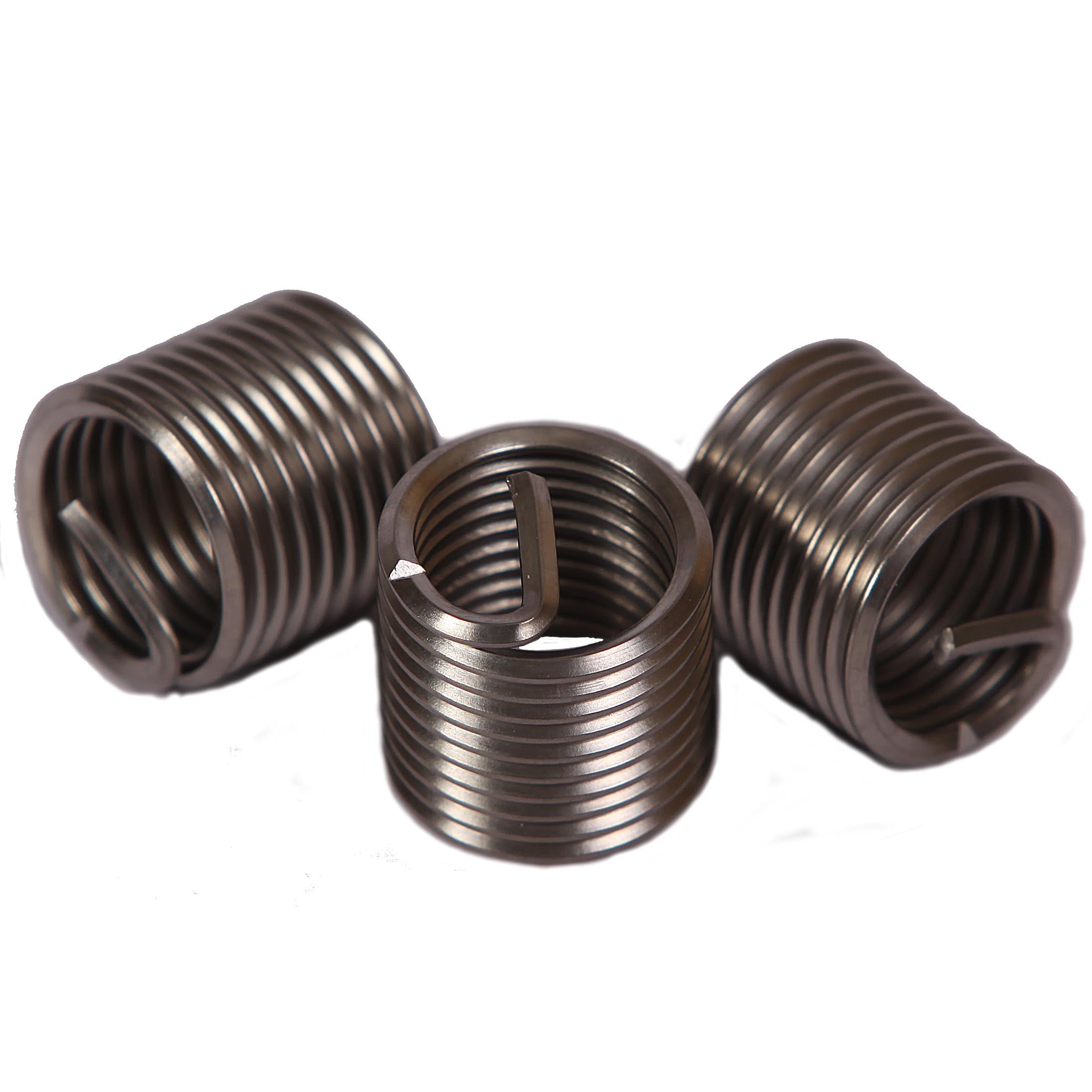

M 22 x 2.5 - 3.0D Threaded inserts length after installation 66 mm
Features and benefits of the Power Coil system:
1) Power Coil inserts are lighter and cheaper than any similar competing products.
2) They can be used anywhere on existing products where no other system has been used so far.
3) They increase the quality and useful value of the product while simultaneously reducing production costs.
4) The use of Power Coil inserts allows the application to thin parts or the use of lighter materials without negatively affecting the strength of the thread.
5) Inserts create internal threads with a much better and more even distribution of force and pressure and compensate for variations in pitch and side angle inaccuracies.
6) They also create internal threads in which frictional wear is practically eliminated and enable the creation of virtually permanently fixed threads.
Parameters [mm]:
Features and benefits of the Power Coil system:
1) Power Coil inserts are lighter and cheaper than any similar competing products.
2) They can be used anywhere on existing products where no other system has been used so far.
3) They increase the quality and useful value of the product while simultaneously reducing production costs.
4) The use of Power Coil inserts allows the application to thin parts or the use of lighter materials without negatively affecting the strength of the thread.
5) Inserts create internal threads with a much better and more even distribution of force and pressure and compensate for variations in pitch and side angle inaccuracies.
6) They also create internal threads in which frictional wear is practically eliminated and enable the creation of virtually permanently fixed threads.
Parameters [mm]:
Screw ∅ | Pitch | Insert length | Insert | |
---|---|---|---|---|
[mm] | [mm] | after installation [mm] | Ord. code | |
22.00 | 2.50 | 1.0D | 22.00 | 3520-22.00x1.0D |
22.00 | 2.50 | 1.5D | 33.00 | 3520-22.00x1.5D |
22.00 | 2.50 | 2.0D | 44.00 | 3520-22.00x2.0D |
22.00 | 2.50 | 2.5D | 55.00 | 3520-22.00x2.5D |
22.00 | 2.50 | 3.0D | 66.00 | 3520-22.00x3.0D |
