Description

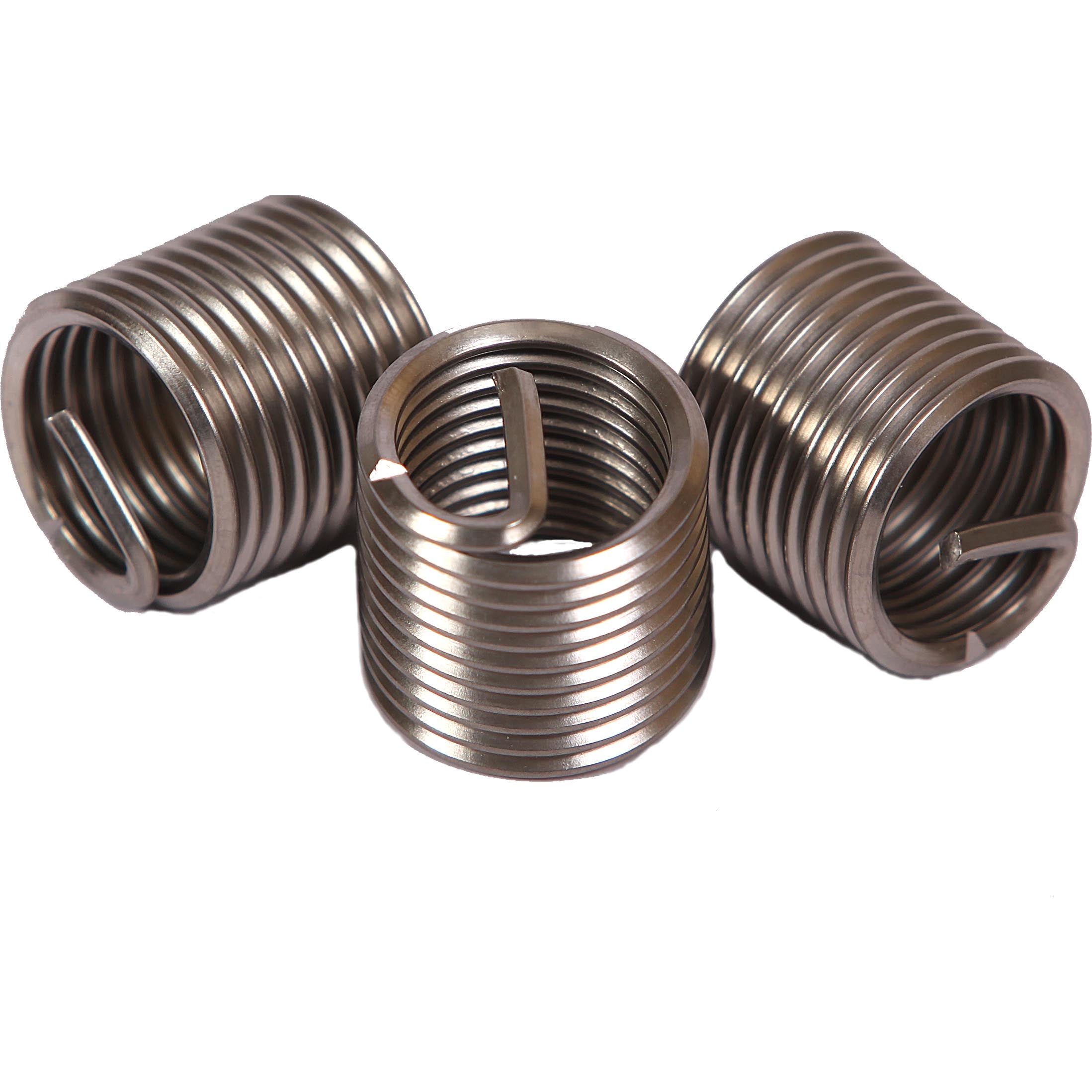

M 24 x 3.0 - 1.0D Threaded inserts length after installation 24 mm
Features and benefits of the Power Coil system:
1) Power Coil cartridges are lighter and cheaper than any similar competitive products.
2) They can be used anywhere on existing products where no other system has been used before.
3) They increase the quality and utility value of the product while reducing production costs.
4) The use of Power Coil inserts allows for application to thin parts or the use of lighter materials without negatively affecting thread strength.
5) The inserts create internal threads with much better and more even force and pressure distribution and compensate for variations in pitch and side angle inaccuracies.
6) They also create internal threads in which frictional wear is practically eliminated and allow the creation of virtually permanently solid threads.
Parameters [mm]:
Features and benefits of the Power Coil system:
1) Power Coil cartridges are lighter and cheaper than any similar competitive products.
2) They can be used anywhere on existing products where no other system has been used before.
3) They increase the quality and utility value of the product while reducing production costs.
4) The use of Power Coil inserts allows for application to thin parts or the use of lighter materials without negatively affecting thread strength.
5) The inserts create internal threads with much better and more even force and pressure distribution and compensate for variations in pitch and side angle inaccuracies.
6) They also create internal threads in which frictional wear is practically eliminated and allow the creation of virtually permanently solid threads.
Parameters [mm]:
| Thread ∅ | Pitch | Insert length | Insert | |
|---|---|---|---|---|
| [mm] | [mm] | after installation [mm] | Order code | |
| 24.00 | 3.00 | 1.0D | 24.00 | 3520-24.00x1.0D |
| 24.00 | 3.00 | 1.5D | 36.00 | 3520-24.00x1.5D |
| 24.00 | 3.00 | 2.0D | 48.00 | 3520-24.00x2.0D |
| 24.00 | 3.00 | 2.5D | 60.00 | 3520-24.00x3.0D |
