Description

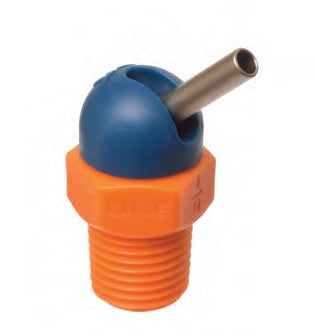

1/8" thread, nozzle diameter 1.6mm, metal neck overhang 12.7mm
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
CT (Compact Turret) nozzles are adapted for confined spaces.
*includes an auxiliary plastic lever for easy and precise fixing of the metal nozzle position
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
CT (Compact Turret) nozzles are adapted for confined spaces.
*includes an auxiliary plastic lever for easy and precise fixing of the metal nozzle position

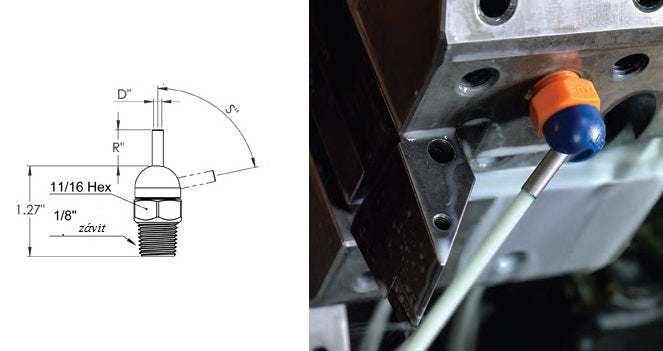

| NOZZLE DIAMETER (D) | NOZZLE OVERFLOW (R) | NOZZLE TILT ANGLE (S) |
|---|---|---|
| [mm] | [mm] | [°] |
| 1.6 | 12.7 | 72 |
