Description

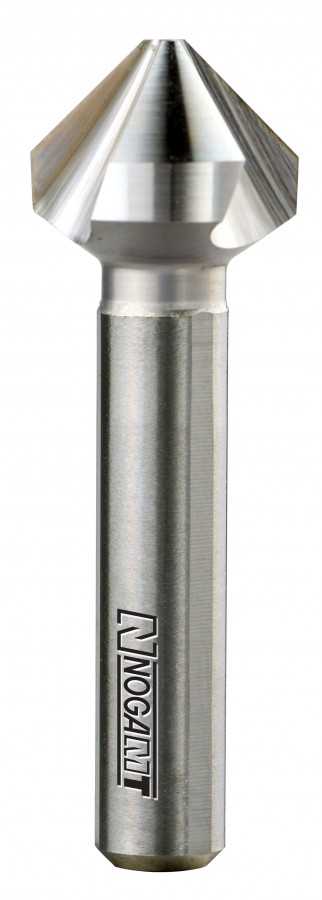

Three-edged countersink 12.4 mm, CARBIDE, DIN 335 C
The NogaMT 3-edge carbide countersink is made of Tvrdok for greater strength,
Ideal for dry machining - high-speed cutting of treated steels and materials up to 67 Rc.
Material: Abrasive tough Carbide steel.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):
The NogaMT 3-edge carbide countersink is made of Tvrdok for greater strength,
Ideal for dry machining - high-speed cutting of treated steels and materials up to 67 Rc.
Material: Abrasive tough Carbide steel.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):
| Large diameter | Small diameter | Stalk | Length | order code |
|---|---|---|---|---|
| D | d1 | d2 | L | |
| 6.30 | 1.50 | 5.00 | 45.00 | CM1504 |
| 8.30 | 2.00 | 6.00 | 50.00 | CM1506 |
| 10.40 | 2.50 | 6.00 | 50.00 | CM1508 |
| 12.40 | 2.80 | 8.00 | 56.00 | CM1510 |
| 16.50 | 3.20 | 10.00 | 60.00 | CM1512 |
| 20.50 | 3.50 | 10.00 | 63.00 | CM1513 |
| 25.00 | 3.80 | 10.00 | 67.00 | CM1514 |
