CM1610 - 90 CARBIDE A 12.4 mm COUNTERSUNK

NOGASKU: CM1610

Price:
Sale price2.314,39 Kč bez DPH
Stock:
In stock

Description

Three-edged countersink 12.4 mm, CARBIDE AlTiN, DIN 335 C

The NogaMT 3-edge carbide countersink is made of Tvrdok for greater strength,
Ideal for dry machining - high-speed cutting of treated steels and materials up to 67 Rc.

Material: Abrasive tough Carbide steel with AlTiN coating.
Hardness: 60 Rc
Angle: 90 degrees

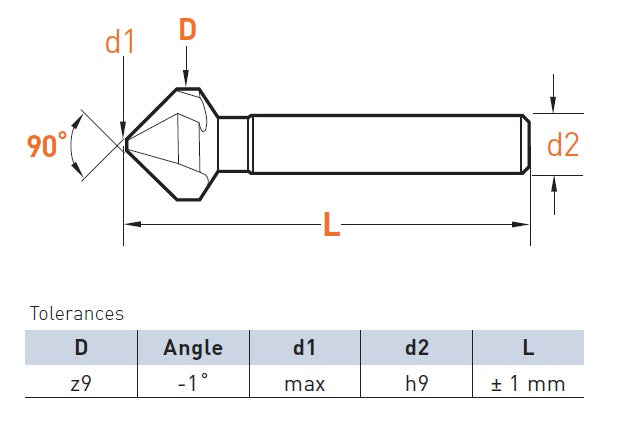

Parameters (mm):
Large diameter Small diameter Stalk Length order code
D d1 d2 L
6.30 1.50 5.00 45.00 CM1604
8.30 2.00 6.00 50.00 CM1606
10.40 2.50 6.00 50.00 CM1608
12.40 2.80 8.00 56.00 CM1610
16.50 3.20 10.00 60.00 CM1612
20.50 3.50 10.00 63.00 CM1613
25.00 3.80 10.00 67.00 CM1614
