CM1238 - COUNTERSUNK 90 HSSE Co 20.5 mm

NOGASKU: CM1238

Price:
Sale price692,75 Kč bez DPH
Stock:
Re-stocking soon

Description

Countersink 20.50 mm, HSSE Co, DIN 335 C

Better wear resistance in hardness and toughness compared to HSS.
Longer service life and faster deburring / countersinking.

Material: Abrasive tough steel HSSE Co .
Hardness: 60 Rc
Angle: 90 degrees

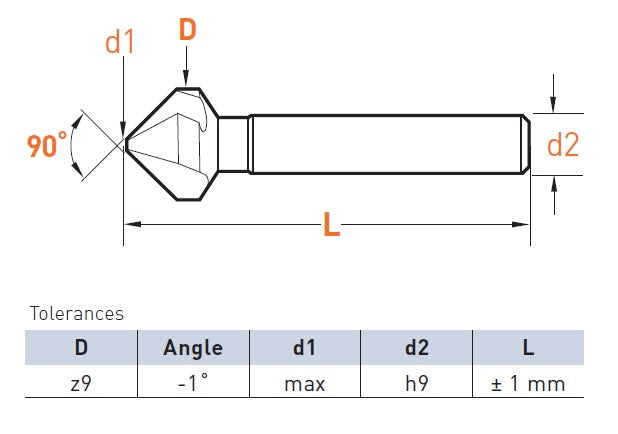

Parameters (mm):
Large ratio Small diameter Stalk Length order code
D d1 d2 L
5.30 1.50 4.00 40.00 CM1204
6.30 1.50 5.00 45.00 CM1209
6.35 1.50 6.35 45.00 CM1210
7.93 2.00 6.35 45.00 CM1214
8.30 2.00 6.00 50.00 CM1216
9.52 2.50 6.35 50.00 CM1219
10.40 2.50 6.00 50.00 CM1221
12.40 2.80 8.00 56.00 CM1225
12.70 2.90 6.35 50.00 CM1227
15.00 3.20 10.00 60.00 CM1230
15.87 3.20 9.52 60.00 CM1232
16.50 3.20 10.00 60.00 CM1233
19.05 3.50 9.52 60.00 CM1237
20.50 3.50 10.00 63.00 CM1238
25.00 3.80 10.00 67.00 CM1241
25.40 3.80 9.52 70.00 CM1243
31.00 4.20 12.00 71.00 CM1249
