Description
Three-edged countersink 9.52 mm, HSSE Co TiAlN, DIN 335 C
Longer life and faster deburring/countersinking.
TiAlN increases wear resistance and improves surface finish.
Material: Abrasive tough steel HSSE Co TiAlN.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):
Longer life and faster deburring/countersinking.
TiAlN increases wear resistance and improves surface finish.
Material: Abrasive tough steel HSSE Co TiAlN.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):

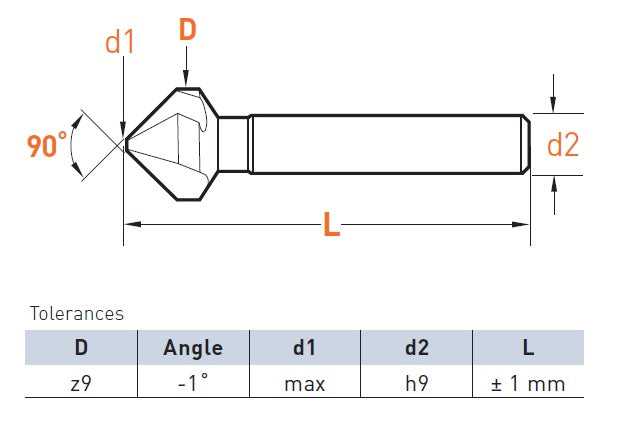

| Large diameter | Small diameter | Stalk | Length | order code |
|---|---|---|---|---|
| D | d1 | d2 | L | |
| 5.30 | 1.50 | 4.00 | 40.00 | CM1404 |
| 6.30 | 1.50 | 5.00 | 45.00 | CM1409 |
| 6.35 | 1.50 | 6.35 | 45.00 | CM1411 |
| 7.93 | 2.00 | 6.35 | 45.00 | CM1414 |
| 8.30 | 2.00 | 6.00 | 50.00 | CM1416 |
| 9.52 | 2.50 | 6.35 | 50.00 | CM1419 |
| 10.40 | 2.50 | 6.00 | 50.00 | CM1421 |
| 12.40 | 2.80 | 8.00 | 56.00 | CM1424 |
| 12.70 | 2.90 | 6.35 | 50.00 | CM1425 |
| 15.00 | 3.20 | 10.00 | 60.00 | CM1428 |
| 15.87 | 3.20 | 9.52 | 60.00 | CM1430 |
| 16.50 | 3.20 | 10.00 | 60.00 | CM1431 |
| 19.05 | 3.50 | 9.52 | 60.00 | CM1434 |
| 20.50 | 3.50 | 10.00 | 63.00 | CM1435 |
| 25.00 | 3.80 | 10.00 | 67.00 | CM1437 |
| 25.40 | 3.80 | 9.52 | 70.00 | CM1438 |
| 31.00 | 4.20 | 12.00 | 71.00 | CM1442 |
