3520-12.00K - SET M 12

M 12 x 1.75 Thread repair kit

Power Coil coil repair kits contain everything you need to successfully repair damaged coils.

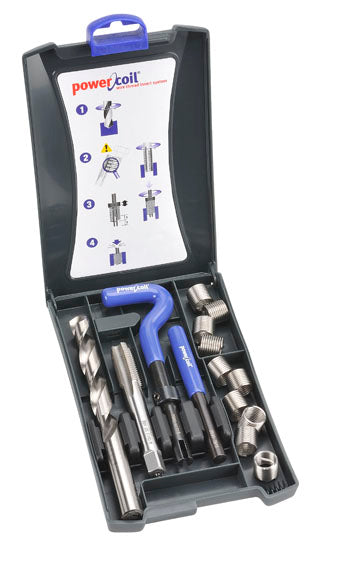

The M 12 set includes: 10 pcs of inserts, drill 12.4mm, tap No. II, mounting mandrel and breaker.

Parameters [mm]:

Screw ∅	Pitch	Insert length		Set	Insert	Drill bit ∅	Threader	Mounting mandrel	Breaker
[mm]	[mm]	after installation [mm]		Ord. code	Ord. code	[mm]	Ord. code	Ord. code	Ord. code
11.00	1.50	1.5D	16.50	3520-11.00K		11.40		3500-HIT14	3500-TB14
12.00	1.75	1.5D	18.00	3520-12.00K	3520-12.00x1.5D	12.40	3520-12.00I	3500-HIT15	3500-TB15
13.00	1.75	1.5D	19.50	3520-13.00K	3520-13.00x1.5D	13.50	3520-13.00I	3500-HIT15
14.00	2.00	1.5D	21.00	3520-14.00K	3520-14.00x1.5D	14.50	3520-14.00I	3500-HIT16
15.00	2.00	1.5D	22.50	3520-15.00K	3520-15.00x1.5D	15.50	3520-15.00I	3500-HIT16
16.00	2.00	1.5D	24.00	3520-16.00K	3520-16.00x1.5D	16.50	3520-16.00I	3500-HIT18
18.00	2.50	1.5D	27.00	3520-18.00K	3520-18.00x1.5D	18.50	3520-18.00I	3500-HIT20
20.00	2.50	1.5D	30.00	3520-20.00K	3520-20.00x1.5D	20.80	3520-20.00I	3500-HIT21
22.00	2.50	1.5D	33.00	3520-22.00K	3520-22.00x1.5D	22.80	3520-22.00I	3500-HIT22
24.00	3.00	1.5D	36.00	3520-24.00K	3520-24.00x1.5D	25.00	3520-24.00I	3500-HIT23
27.00	3.00	1.5D	40.50	3520-27.00K	3520-27.00x1.5D	28.00	3520-27.00I	3500-HIT24
30.00	3.50	1.5D	45.00	3520-30.00K	3520-30.00x1.5D	31.00	3520-30.00I	3500-HIT25
33.00	3.50	1.5D	49.50	3520-33.00K	3520-33.00x1.5D	34.00	3520-33.00I	3500-HIT26
36.00	4.00	1.5D	54.00	3520-36.00K	3520-36.00x1.5D	37.00	3520-36.00I	3500-HIT28
