3521-12.00K - SET M 12

M 12 x 1.5 Thread repair kit

Power Coil coil repair kits contain everything you need to successfully repair damaged coils.

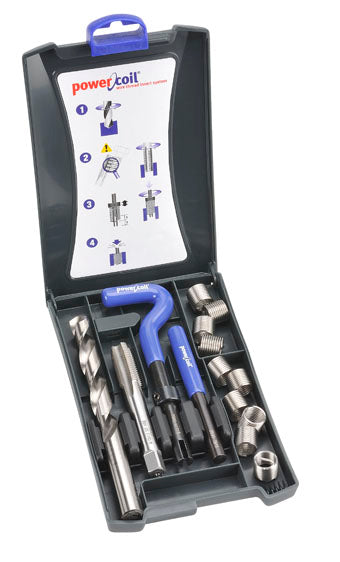

The M 12 set includes: 10 pcs of inserts, drill 12.4mm, tap No. II, mounting mandrel and breaker.

Parameters [mm]:

Screw ∅	Pitch	Insert length		Set	Insert	Drill bit ∅	Threader	Mounting mandrel	Breaker
[mm]	[mm]	after installation [mm]		Ord. code	Ord. code	[mm]	Ord. code	Ord. code	Ord. code
8.00	1.00	1.5D	12.00	3521-8.00K	3521-8.00x1.5D	8.30	3521-8.00I	3500-HIT11	3500-TB12
10.00	1.25	1.5D	15.00	3521-10.00K	3521-10.00x1.5D	10.30	3521-10.00I	3500-HIT13	3500-TB13
11.00	1.25	1.5D	16.50	3521-11.00K	3521-11.00x1.5D	11.30	3521-11.00I	3500-HIT14	3500-TB14
12.00	1.50	1.5D	18.00	3521-12.00K	3521-12.00x1.5D	12.40	3521-12.00I	3500-HIT15	3500-TB15
13.00	1.50	1.5D	19.50	3521-13.00K	3521-13.00x1.5D	13.20	3521-13.00I	3500-HIT15
14.00	1.50	1.5D	21.00	3521-14.00K	3521-14.00x1.5D	14.40	3521-14.00I	3500-HIT16
15.00	1.50	1.5D	22.50	3521-15.00K	3521-15.00x1.5D	15.30	3521-15.00I	3500-HIT16
16.00	1.50	1.5D	24.00	3521-16.00K	3521-16.00x1.5D	16.50	3521-16.00I	3500-HIT18
18.00	2.00	1.5D	27.00	3521-18.00K	3521-18.00x1.5D	18.50	3521-18.00I	3500-HIT20
20.00	2.00	1.5D	30.00	3521-20.00K	3521-20.00x1.5D	20.50	3521-20.00I	3500-HIT21
22.00	2.00	1.5D	33.00	3521-22.00K	3521-22.00x1.5D	22.50	3521-22.00I	3500-HIT22
24.00	2.00	1.5D	36.00	3521-24.00K	3521-24.00x1.5D	24.50	3521-24.00I	3500-HIT23
27.00	2.00	1.5D	40.50	3521-27.00K	3521-27.00x1.5D	27.50	3521-27.00I	3500-HIT24
30.00	2.00	1.5D	45.00	3521-30.00K	3521-30.00x1.5D	30.50	3521-30.00I	3500-HIT26
33.00	2.00	1.5D	49.50	3521-33.00K	3521-33.00x1.5D	33.50	3521-33.00I	3500-HIT26
36.00	3.00	1.5D	54.00	3521-36.00K	3521-36.00x1.5D	37.00	3521-36.00I	3500-HIT28
