3521-14.00K - SET M 14

PowercoilSKU: 3521-14.00K

Price:
Sale price1.589,00 Kč bez DPH
Stock:
Re-stocking soon

Description

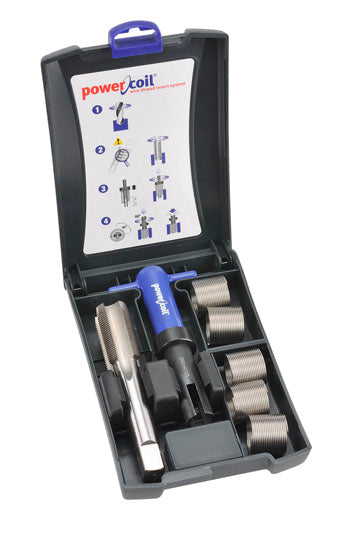

M 14 x 1.5 Thread repair kit

Power Coil coil repair kits contain everything you need to successfully repair damaged coils.
Set M 14 includes: 10 pcs of inserts, tap No. II and mounting mandrel.

Parameters [mm]:
Screw ∅ Pitch Insert length Set Insert Drill bit ∅ Threader Mounting mandrel Breaker
[mm] [mm] after installation [mm] Ord. code Ord. code [mm] Ord. code Ord. code Ord. code
8.00 1.00 1.5D 12.00 3521-8.00K 3521-8.00x1.5D 8.30 3521-8.00I 3500-HIT11 3500-TB12
10.00 1.25 1.5D 15.00 3521-10.00K 3521-10.00x1.5D 10.30 3521-10.00I 3500-HIT13 3500-TB13
11.00 1.25 1.5D 16.50 3521-11.00K 3521-11.00x1.5D 11.30 3521-11.00I 3500-HIT14 3500-TB14
12.00 1.50 1.5D 18.00 3521-12.00K 3521-12.00x1.5D 12.40 3521-12.00I 3500-HIT15 3500-TB15
13.00 1.50 1.5D 19.50 3521-13.00K 3521-13.00x1.5D 13.20 3521-13.00I 3500-HIT15
14.00 1.50 1.5D 21.00 3521-14.00K 3521-14.00x1.5D 14.40 3521-14.00I 3500-HIT16
15.00 1.50 1.5D 22.50 3521-15.00K 3521-15.00x1.5D 15.30 3521-15.00I 3500-HIT16
16.00 1.50 1.5D 24.00 3521-16.00K 3521-16.00x1.5D 16.50 3521-16.00I 3500-HIT18
18.00 2.00 1.5D 27.00 3521-18.00K 3521-18.00x1.5D 18.50 3521-18.00I 3500-HIT20
20.00 2.00 1.5D 30.00 3521-20.00K 3521-20.00x1.5D 20.50 3521-20.00I 3500-HIT21
22.00 2.00 1.5D 33.00 3521-22.00K 3521-22.00x1.5D 22.50 3521-22.00I 3500-HIT22
24.00 2.00 1.5D 36.00 3521-24.00K 3521-24.00x1.5D 24.50 3521-24.00I 3500-HIT23
27.00 2.00 1.5D 40.50 3521-27.00K 3521-27.00x1.5D 27.50 3521-27.00I 3500-HIT24
30.00 2.00 1.5D 45.00 3521-30.00K 3521-30.00x1.5D 30.50 3521-30.00I 3500-HIT26
33.00 2.00 1.5D 49.50 3521-33.00K 3521-33.00x1.5D 33.50 3521-33.00I 3500-HIT26
36.00 3.00 1.5D 54.00 3521-36.00K 3521-36.00x1.5D 37.00 3521-36.00I 3500-HIT28
